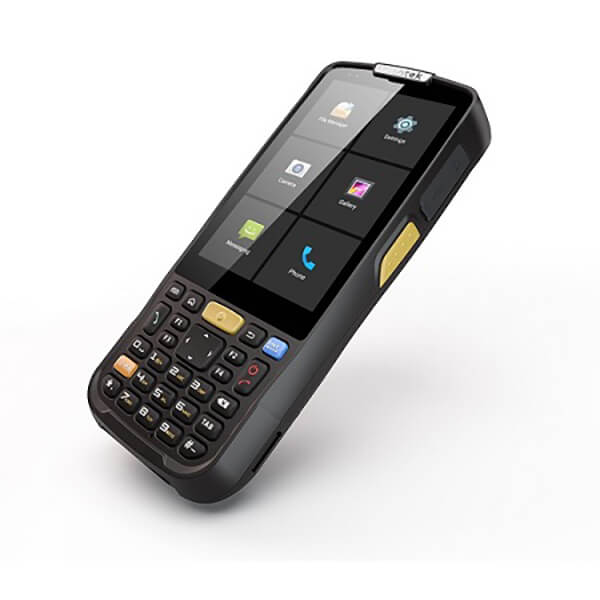

CH80 is rugged handheld data terminal with latest Android version. It is built for life out in the field, integrates Corning Gorilla glass for display, able to handle drops, bumps, spills, dust, vibration.
With stable wireless connections and accurate efficient data capture options, you can find this easy-to-deploy device a valuable helper to increase productivity in logistics, express delivery, warehousing, retail and industrial manufacture etc.
|
CPU |
Qualcomm Quad-core ARM Cortex-A53 1.3 GHz processor |
|
|
Operating System |
Android 10.0 OS |
|
|
Memory |
8GB ROM + 1 GB RAM(16GB+2GB Optional) |
|
|
SIM Slot |
Support Micro SIM card |
|
|
PSAM Slot |
Support PSAM card (SIM 2 card Optional) |
|
|
Expansion Slot |
Micro SD card (Up to 128G) |
|
|
Display |
4.0 inch high resolution (480*800) IPS TFT display |
|
|
Touch Panel |
Industrial-grade capacitive touch panel (supporting operation with gloves) |
|
|
Camera |
8 Mega-Pixel Auto focus with LED flash |
|
|
Scanner window |
Tempered glass |
|
|
Wireless LAN |
Wi-Fi 802.11a/b/g/n/ac ; 2.4G/5G |
|
|
Wireless WAN (Network frequency) |
2G |
GSM/GPRS/EDGE: 850/900/1800/1900MHZ |
|
3G |
European version (Default) TD-SCDMA:B34/B39, CDMA 1x/EVDO:BC0 American version (Optional): WCDMA:B2/B4/B5, CDMA 1X/EVDO:BC1 |
|
|
4G |
European version (Default): FDD-LTE：B1/3/5/7/8/20 TDD-LTE：B38/39/40/41 American version (Optional): FDD-LTE：B2/4/5/12/13/17/25/26 TDD-LTE：B41 |
|
|
Wireless WAN (Data service) |
LTE/WCDMA/EDGE/GPRS |
|
|
Bluetooth |
Bluetooth 4.1+LE |
|
|
Keyboard |
Anti-wear, Interior transmission light Industrial keyboard |
|
|
GPS |
Support GPS(A-GPS)/Bei-Dou/ Glonass or Galileo |
|
|
Battery |
3.7V 4500mAh lithium polymer battery |
|
|
Charging |
DC 5V 2A |
|
|
Audio |
Built-in microphone |
|
|
Notification |
Vibrator alerts/LED/Audio notification |
|
|
Input / Output Ports |
1 Micro USB port |
|
|
Vibration Motor |
Built-in programmable vibration motor |
|
|
Sensor |
G-Sensor |
|
|
Development Tools |
Android SDK + JDK + Eclipse |
|
|
Programming Language |
Java |
|
|
Operating Temp |
-10℃ ~ 50℃ |
|
|
Storage Temp |
-20℃ ~ 60℃ |
|
|
Humidity |
0~95% (no condensation) |
|
|
ESD |
Air 15KV/Contact 8KV |
|
|
Sealing |
IP65 |
|
|

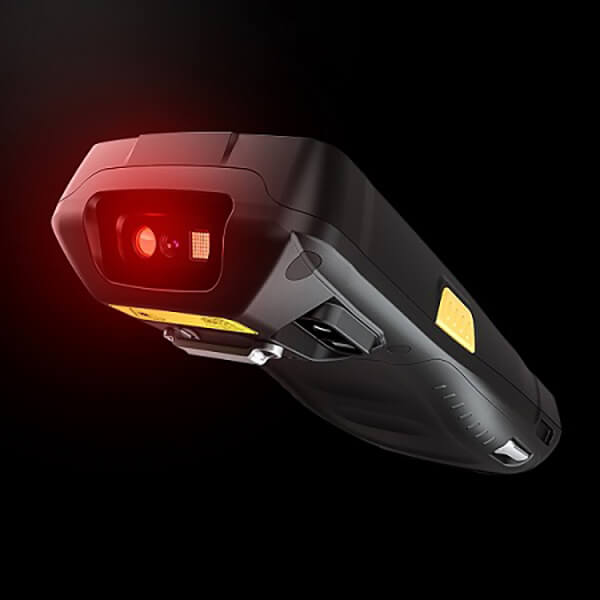

2D Laser Scanner ZEBRA: SE4710 |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
|
|
Drop Durability |
Above 1.5m multiple drops to concrete ground |
|
|
Weight |
295 g (battery included) |
|
|
Dimensions (L*W*D) |
165mm x 72 mm x 28 mm |
|
|
Accessories |
Battery, Power adapter, USB cable, Hand strap |
|
|
Optional |
NFC |
13.56 MHz; |
|
Charging cradle |
Supports charging by cradle |
|
