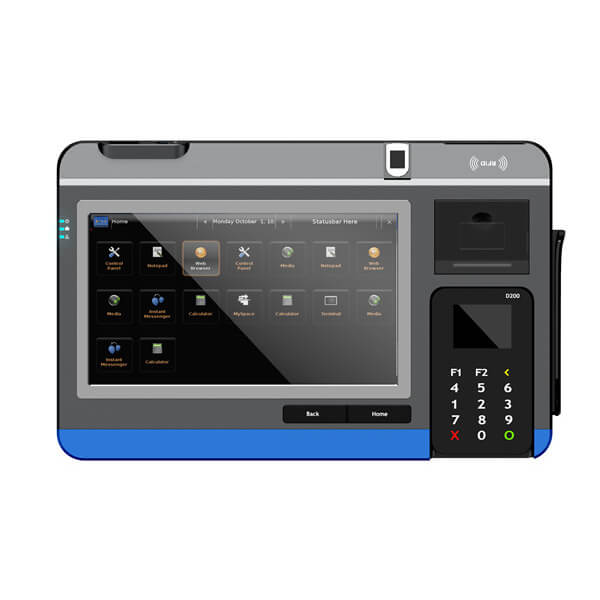

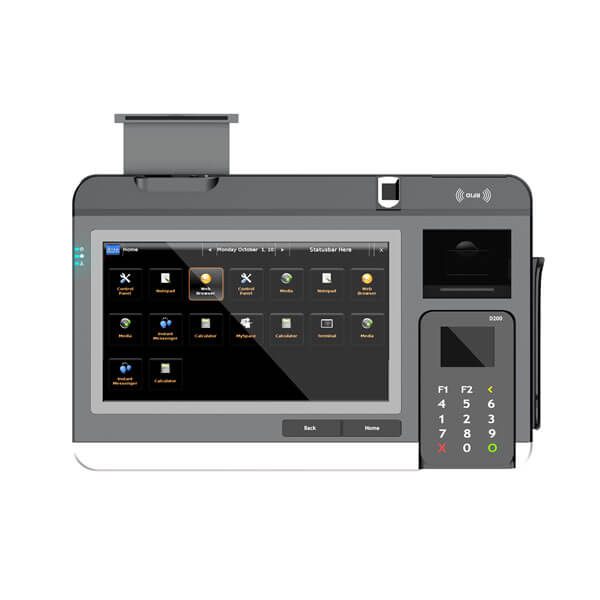

Android Retail Desktop POS|Restaurant POS|CIONTEK

> Android 5.1;

> Quad-Core 1.8G CPU;

> 10” IPS touch screen, changeable color bar, fingerprint scanner, card shelf for OCR, 5.0 MP AF camera, 58mm thermal printer;

> ID/PASSPORT OCR, fast scanning ID Information;

> Adjustable tilt camera for face shot;

> Multiple Payment Solution : PayPal accessories, NFC Google wallet , QR code, stripe bank card, smart card, SMS and etc.

Description:

Basic Module	Description
OS	Android 5.1
CPU	RK3288 Quad-Core CPU,1.8GHZ
RAM	2GB
ROM	8GB
Extended memory	TF card up to 64GB
Display	10.1 inch IPS Multi capacitive touch screen; Resolution:1280 x 800
MSR	3 track
PSAM	3 PSAM slot
IC card	Can read standard-size IC card, compatible with small-size SIM card
NFC/RFID	Support ISO14443 Type A/Type B、Mifare 1K/4K、SONY Felica NFC Embedded
Printer	High speed thermal printer, 58*45mm thermal printer,80mm/s
Audio	Audio	Built in hi-fi audio
	Speaker	Biult in dual channel speaker
	MIC	Support headset

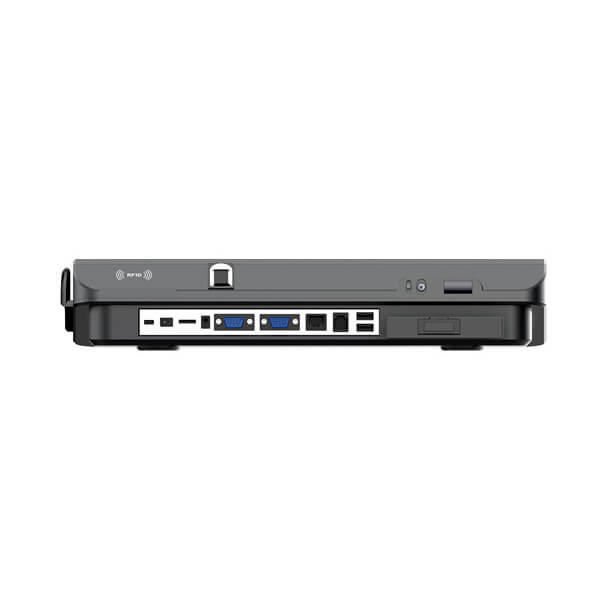

I/O port	USB Host	4 pcs
	USB OTG	1 pcs
	RS232	2 pcs
	RJ11	1 pcs
	HDMI	1 pcs
	Video	1 pcs
	DC plug-in	Standard DC plug-in
	PSAM slot	3 pcs
	SIM slot	1 pcs
	RJ45	1 pcs
	TF slot	1 pcs
Battery	7.4V 5200mAh lithium battery, for 8 hours continuous working time
Camera	5.0 mega pixel, 20 degree angle adjustment and auto focus.
Communication	WIFI	802.11(b/g/n)
	Bluetooth4.0
	RJ45	1pcs
	RJ11	1pcs
	3G、4G（optional）	changeable
	GPS
Button	HOME、BACK、POWER
Indicating lamp	Power、Printer、Network
Adapters	9V/5A
Storage Temperature	-30 - 70 ℃
Working Temperature	-10 - 50 ℃
Weight	2.6KG/5.7lb
Dimension	32024575mm
Optional Components
QR Scanner	Hardware QR scanner recognition
Fingerprint Scanner	FBI certification, biometric detection
MPOS	Integrated MPOS slot，Support Bluetooth connection mode

Q1: what is SafeDroid?

A: SafeDroid is based on Android OS,it is an in-depth customized operating system for secure system which complies with PCI standards
Q2: What is your lead time ?

A: All models are sample available in stock ,you can contact our sales team for mass order lead time
Q3: Can you do branding ?

A: This service is offered with certain MOQ,you can contact our sales team for support .
Q4: Do you provide free SDK ?

A: Yes ,SDK can be released after sample order by your sales
Q5: What's the dimension of the package?

A: For basic configuration,
CS10: Per unit after package is 20.5*15.2*8.2 CM/0.7KG;Per shipment box of 20 unit is 40*44*33CM ,G.W is 14.8KG;
CS20: Per unit after package is 18.8*11*6.5 CM/0.48Kg; Per shipment box of 36 is 40*34.5*39.5 CM,G.W is 17.4kg;
CS30: Per unit after package is 23.6*15.2*6.5 CM/0.7Kg,Per shipment box of 20 unit is 49*34*34 CM G.W is 14.5 kg.
Q6: Do you provide payment software on your device ?

A: We don't touch the software/APPs of payment,software development and integration are supposed to be implemented by client side,we can offer SDK and technical support.
Q7: What if I need a cost down model based on your current models ?

A: Please contact our sales for ODM/OEM support if there is certain quantity.
