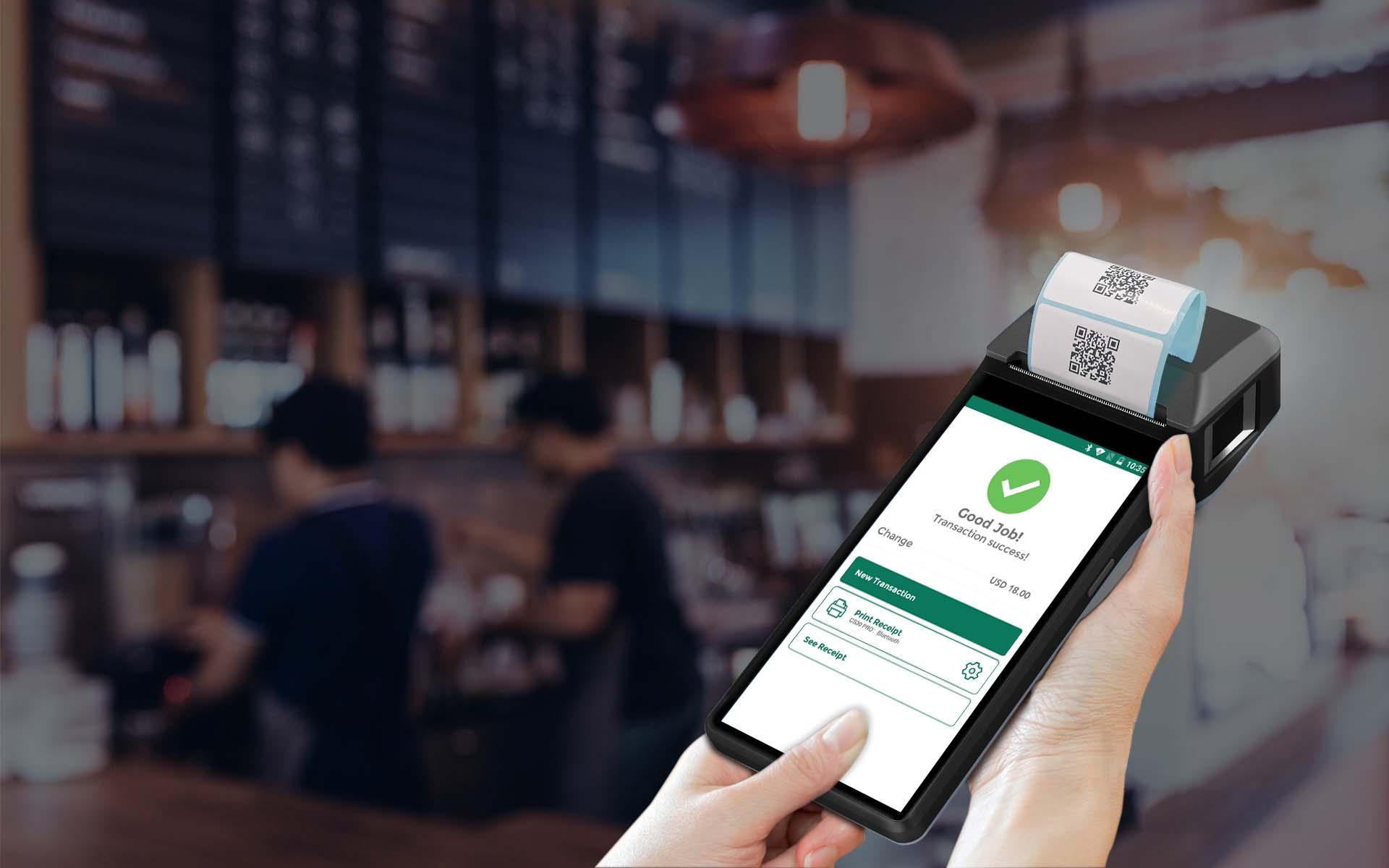

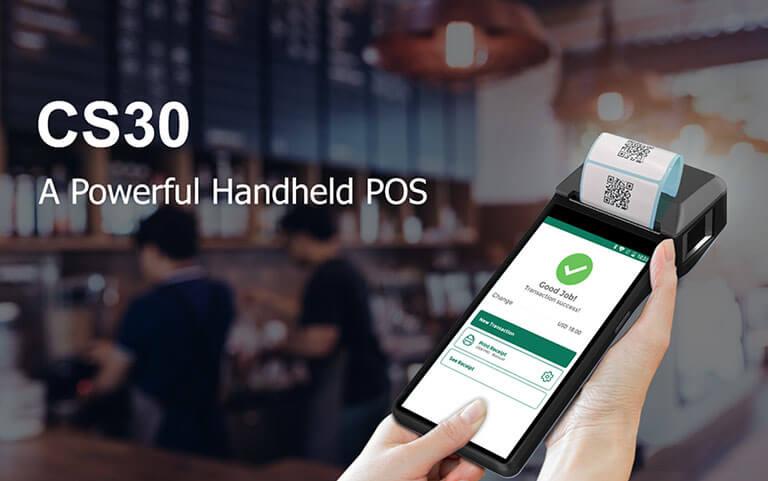

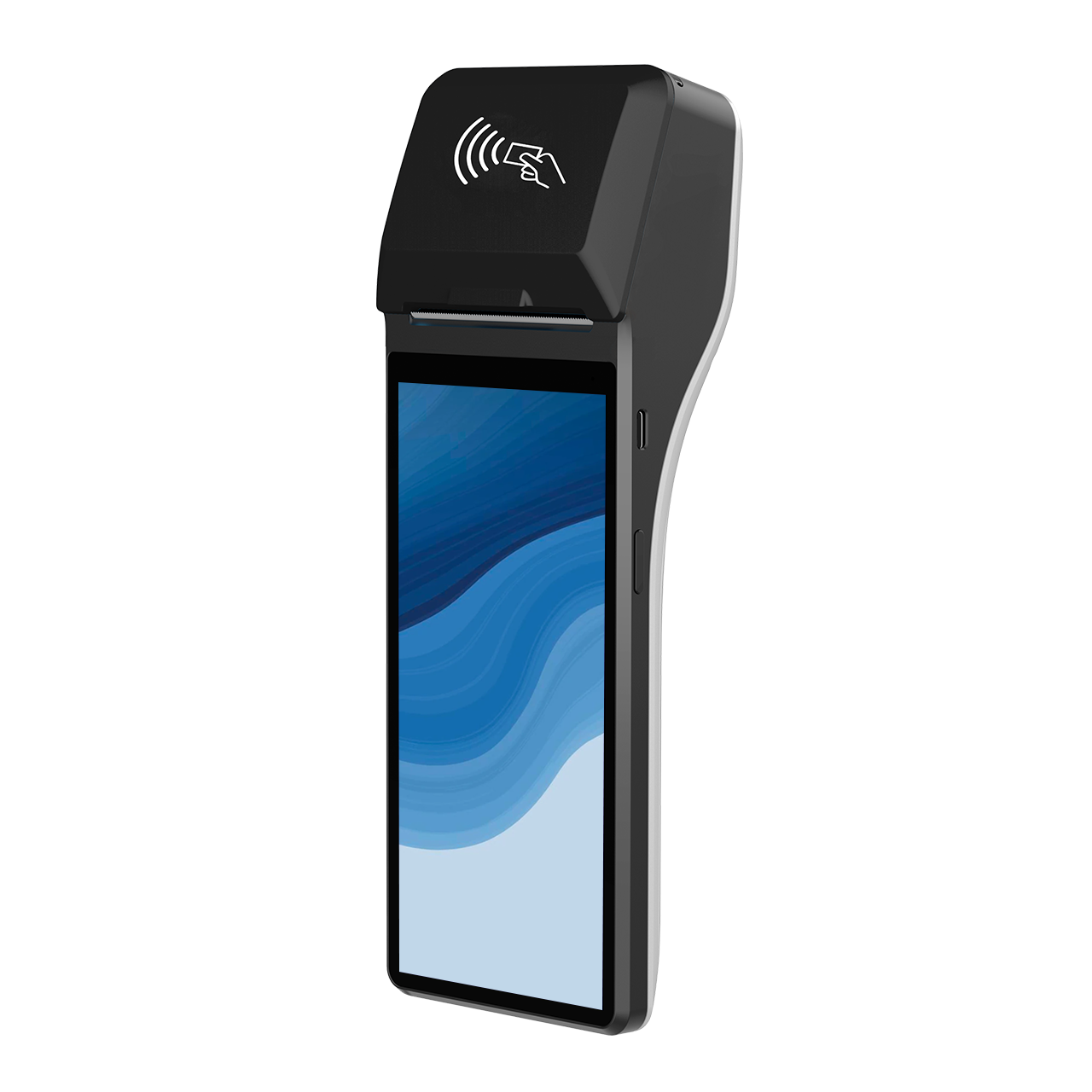

Ciontek CS30

A Powerful Handheld POS

Leading Config Supports Booming Business

Security OS

Security OS
(based on Android 14.0)

Quad-Core

Quad-Core ARM
Cortex-A53 2.0 GHz

Memory

2GB RAM + 16GB ROM

Connectivity

4G / BT / WIFI

背景图

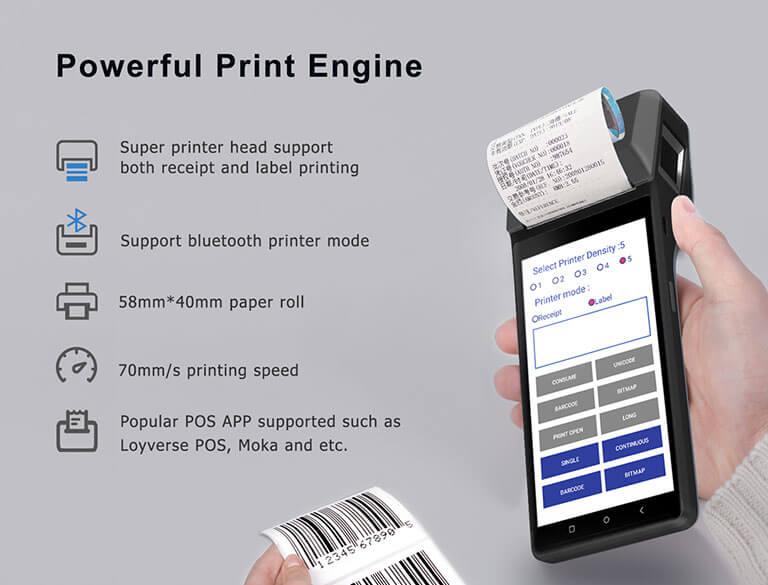

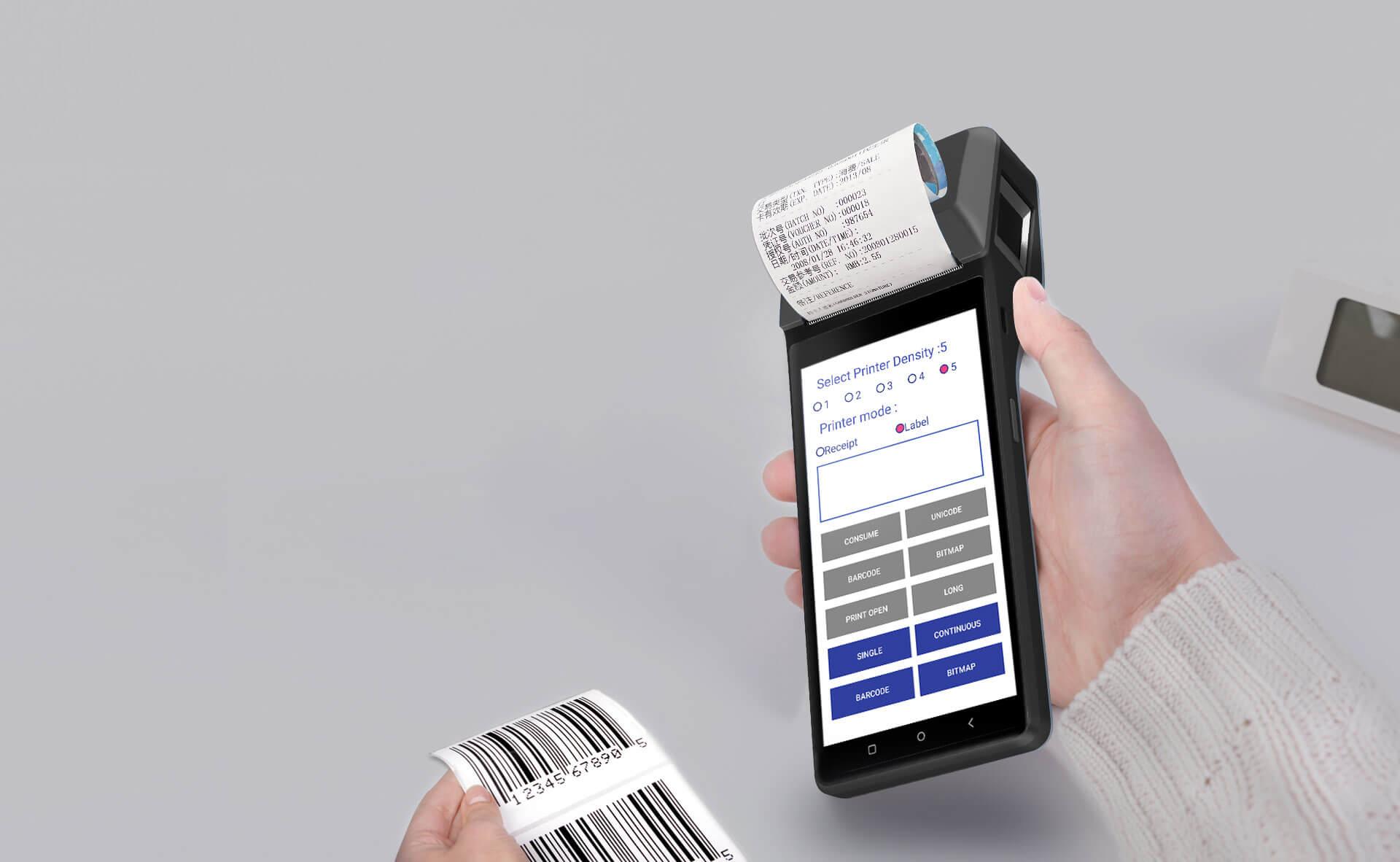

Powerful Print Engine

icon1

Super printer head support both receipt
and label printing

icon2

Support bluetooth printer mode

icon3

58mm*40mm paper roll

icon4

70mm/s printing speed

icon5

Popular POS APP supported
such as Loyverse POS, Moka and etc.

背景图

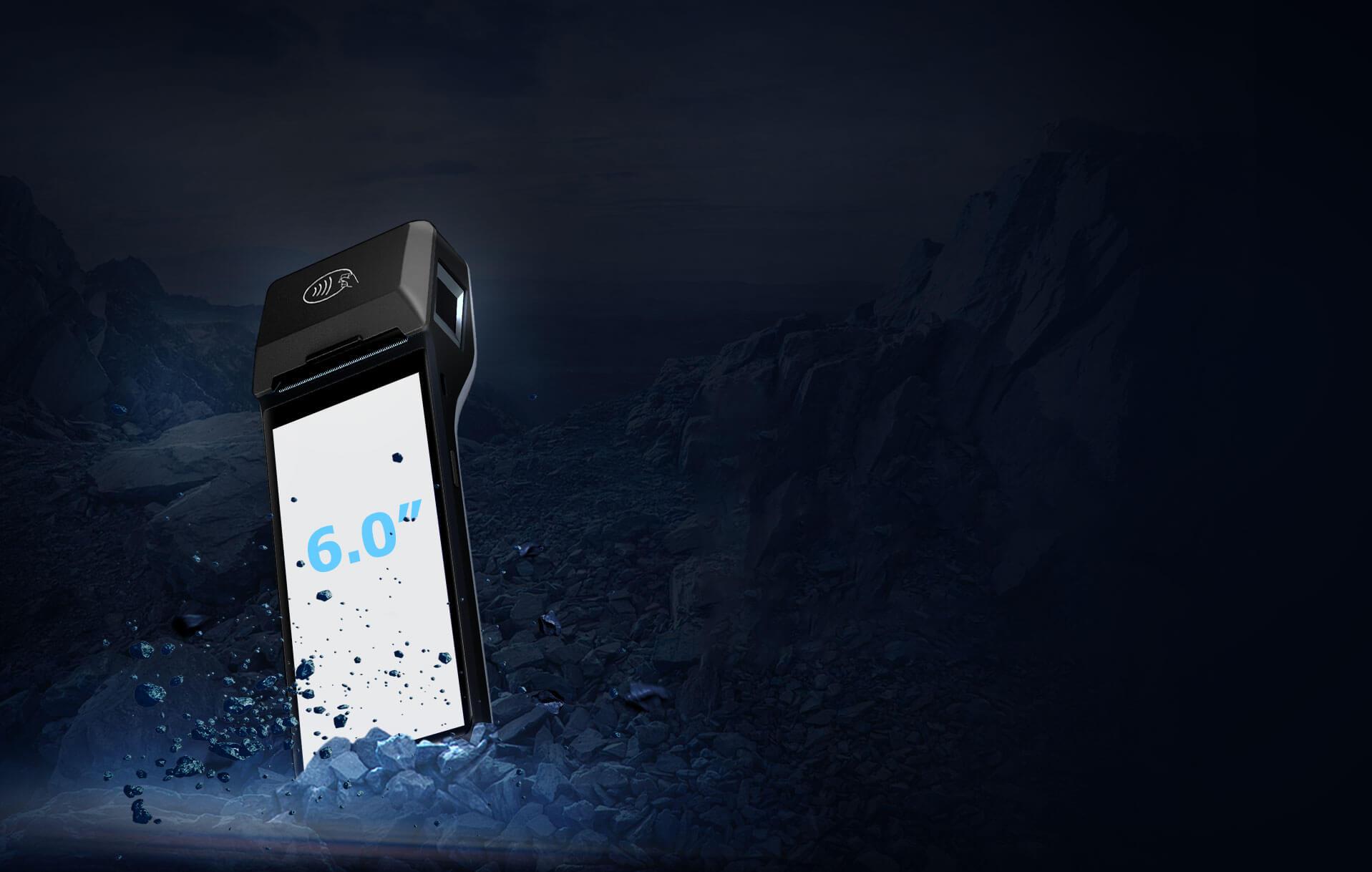

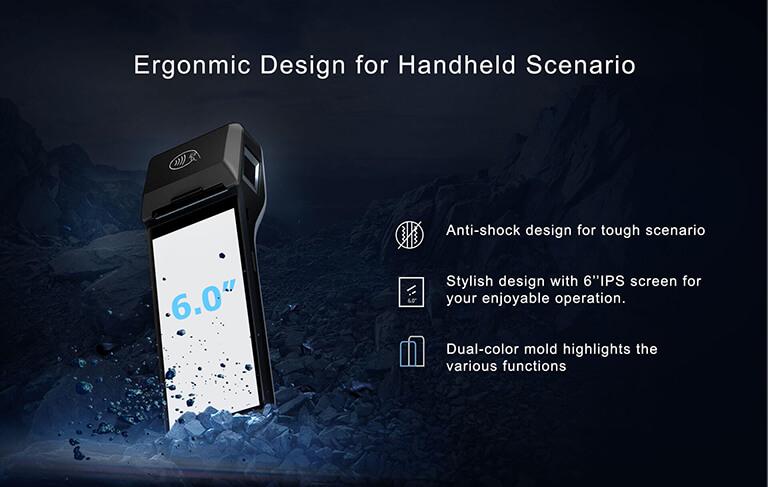

Ergonomic Design for Handheld Scenario


icon1

Anti-shock design for tough scenario

icon2

Stylish design with 6" IPS screen for your enjoyable operation.

icon3

Dual-color mold highlights the various functions

背景图

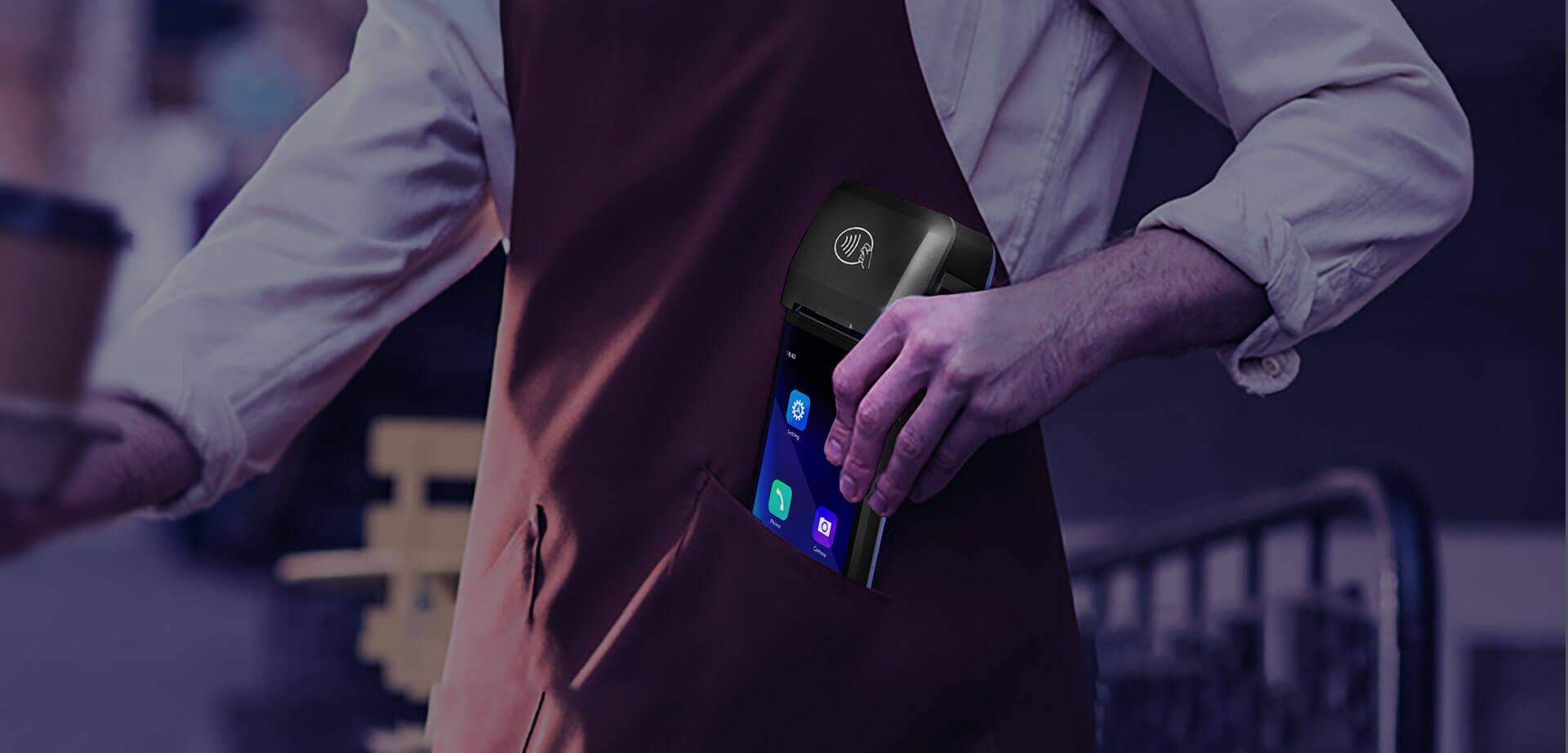

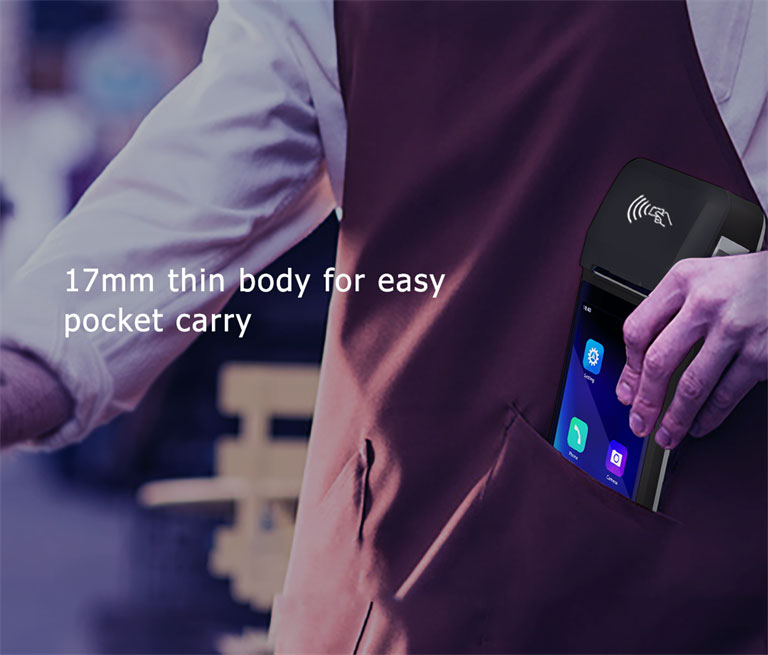

17mm thin body for
easy pocket carry

背景图

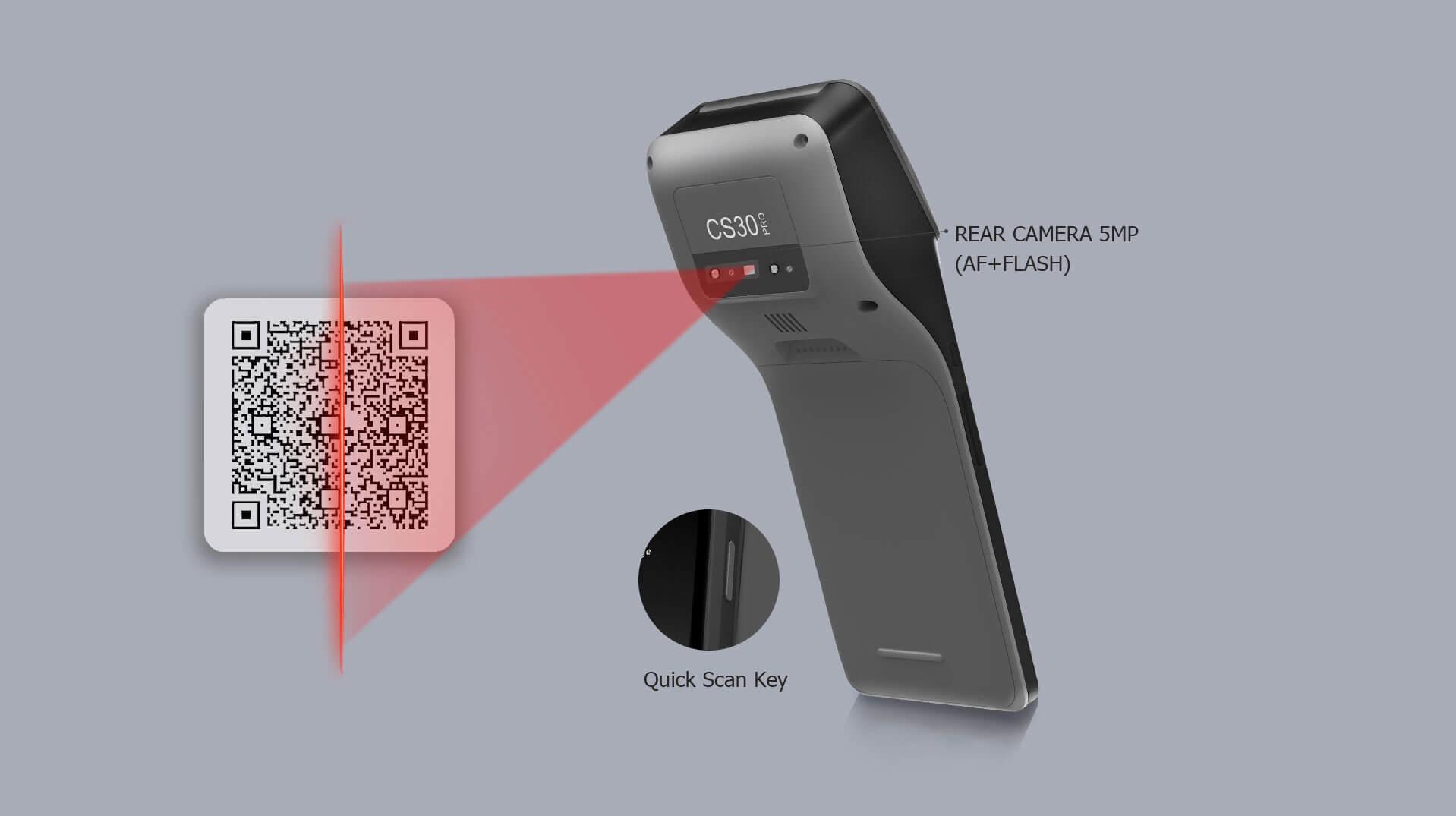

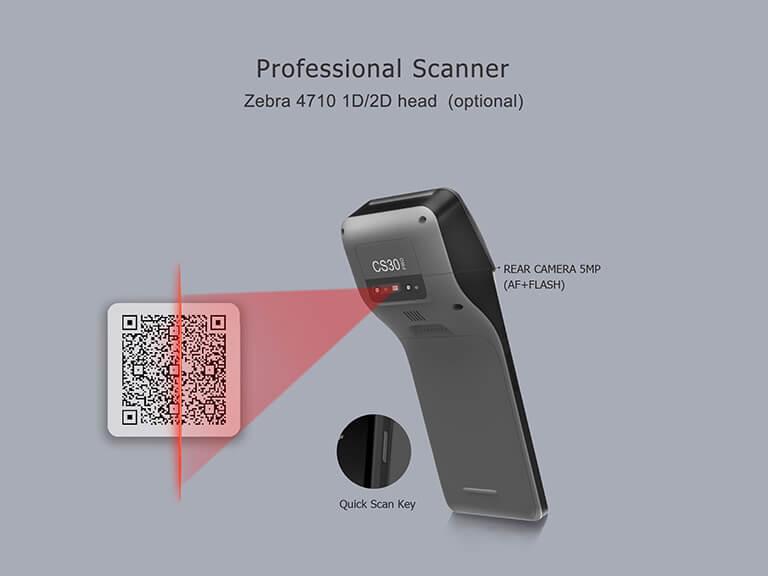

Professional Scanner

Zebra 4710 1D/2D head (optional)

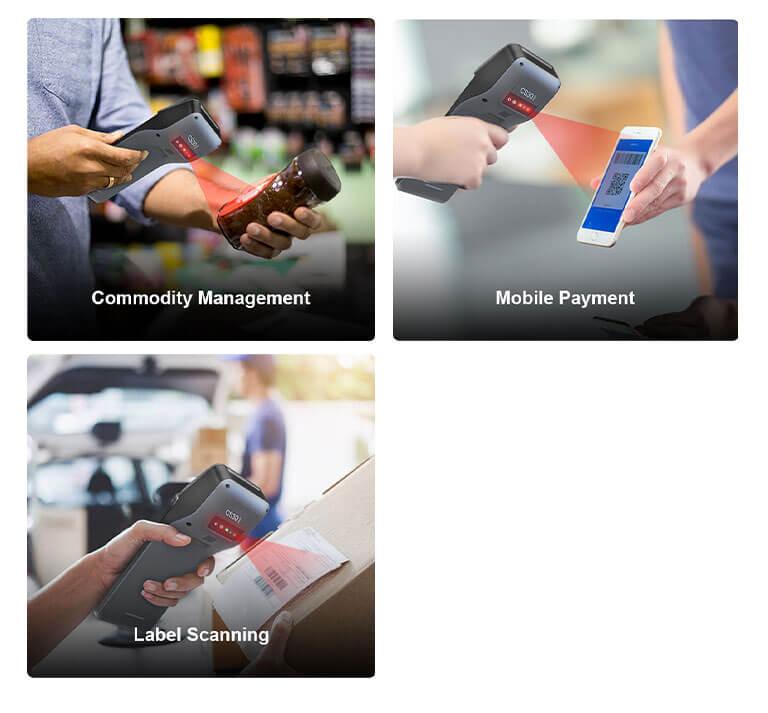

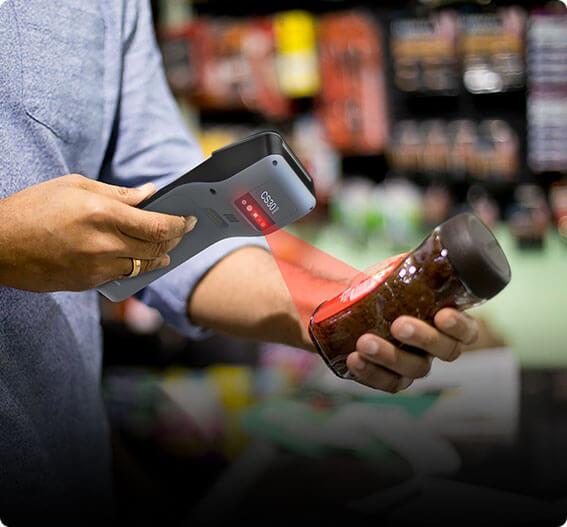

Commodity Management

Commodity Management

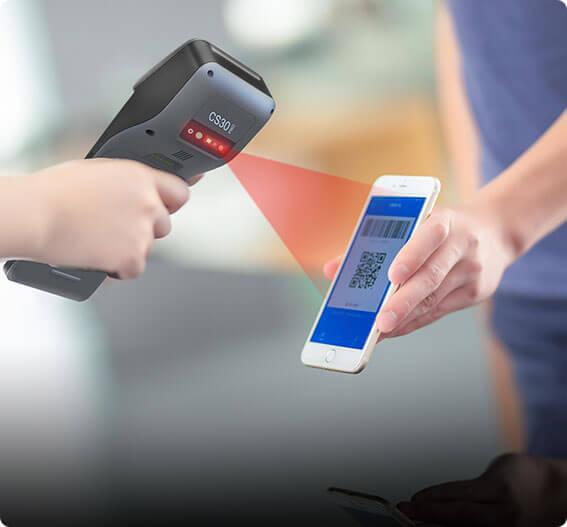

Mobile Payment

Mobile Payment

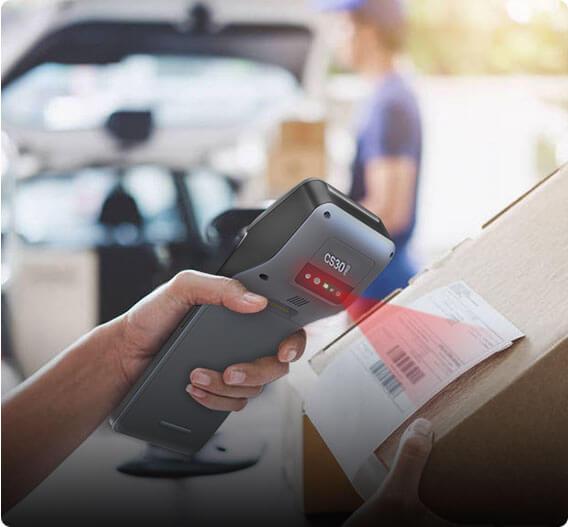

Label Scanning

Label Scanning

背景图

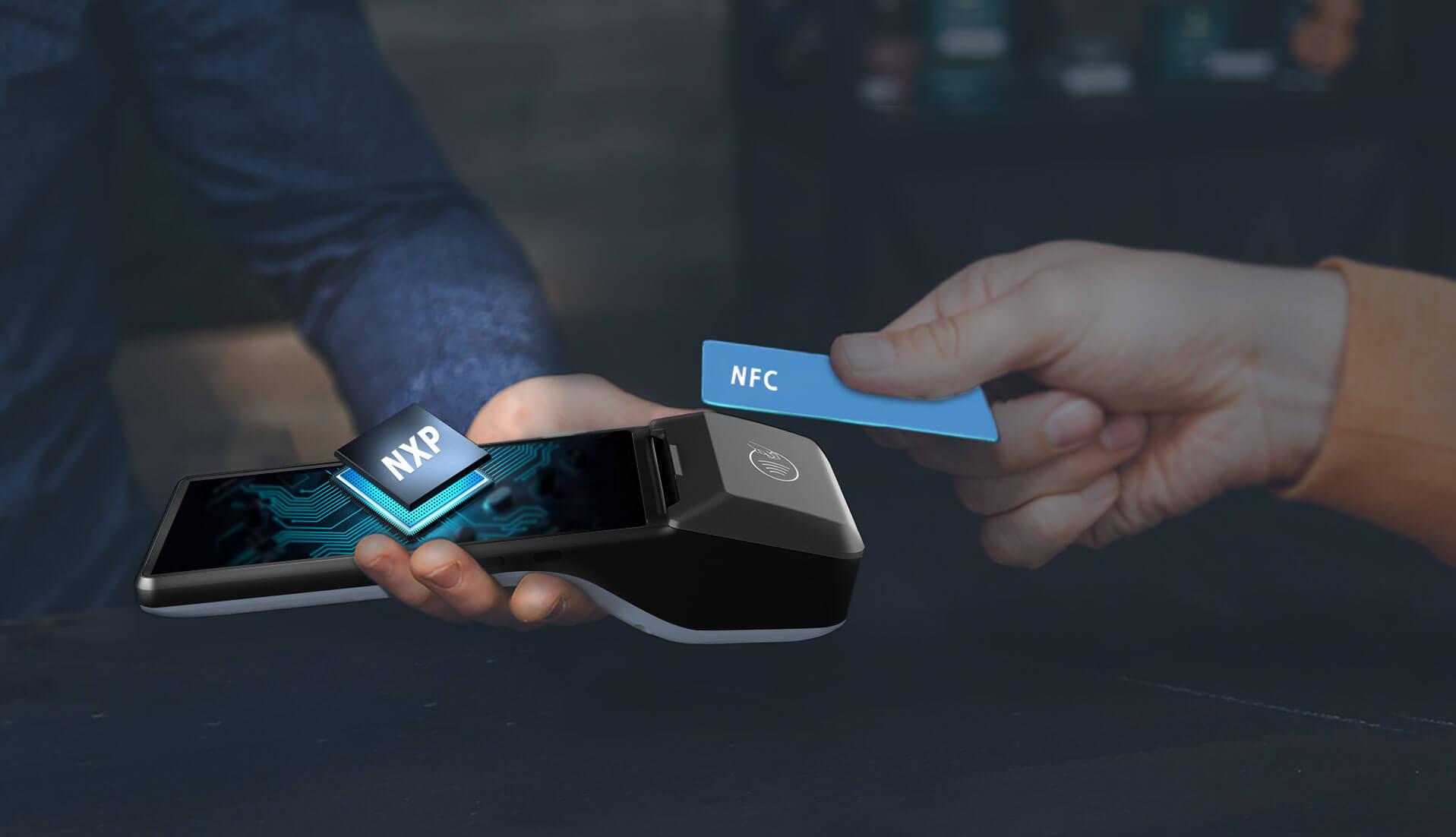

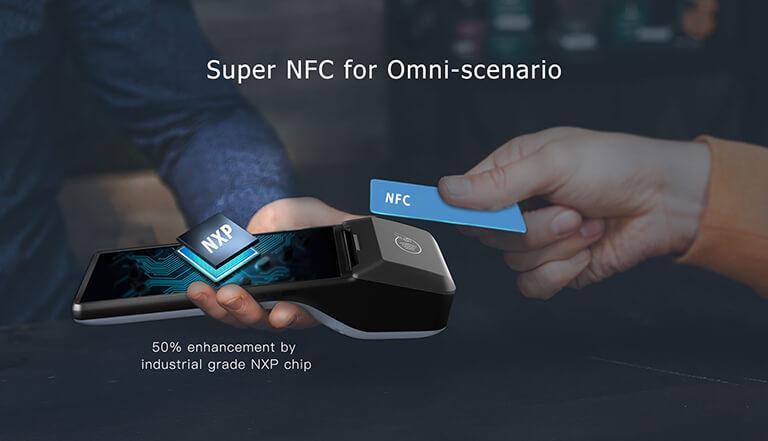

Super NFC for Omni-scenario

50% enhancement by
industrial grade NXP chip

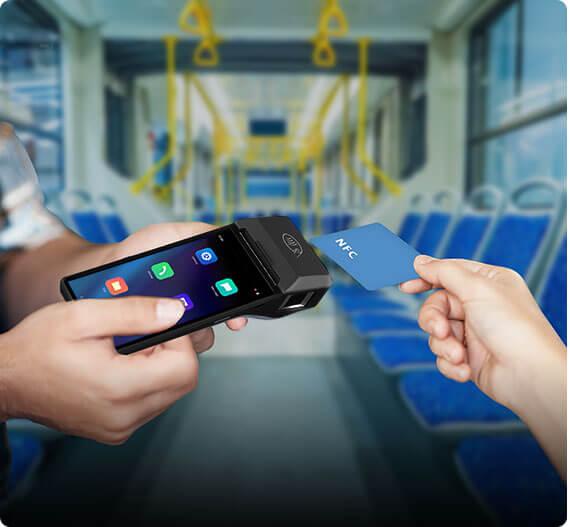

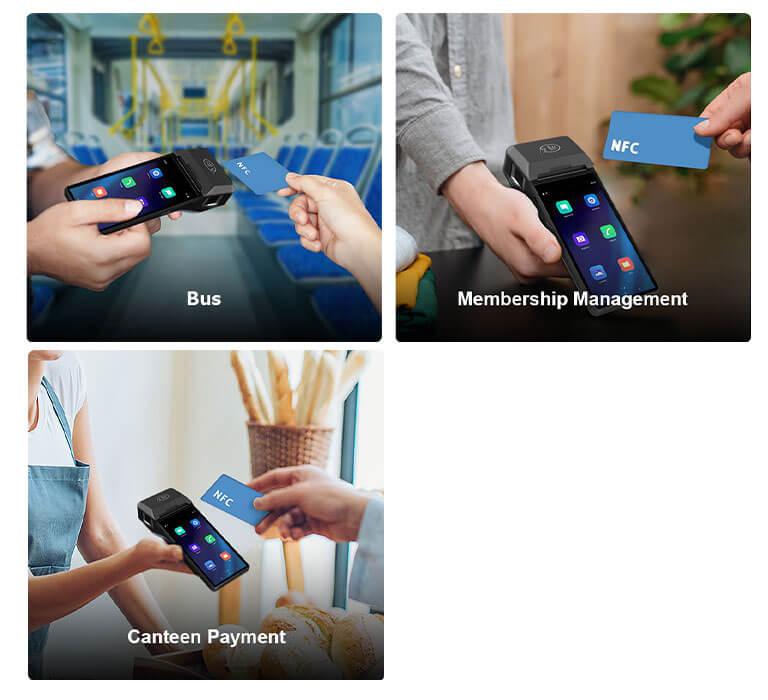

Bus

Bus

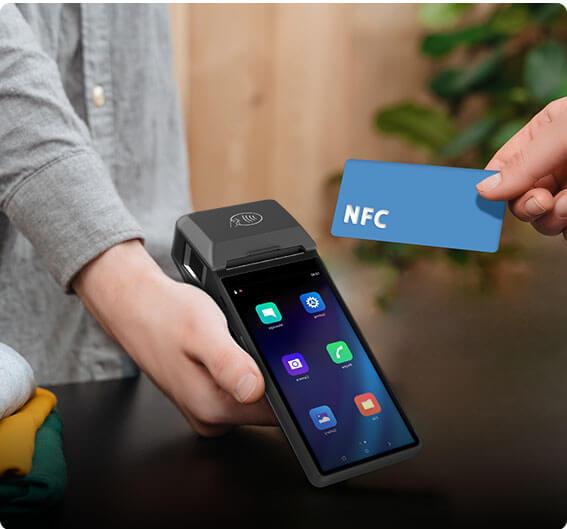

Membership Management

Membership Management

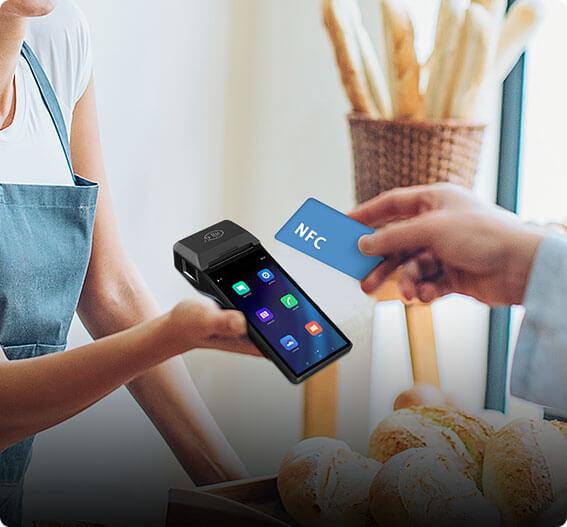

Canteen Payment

Canteen Payment

背景图

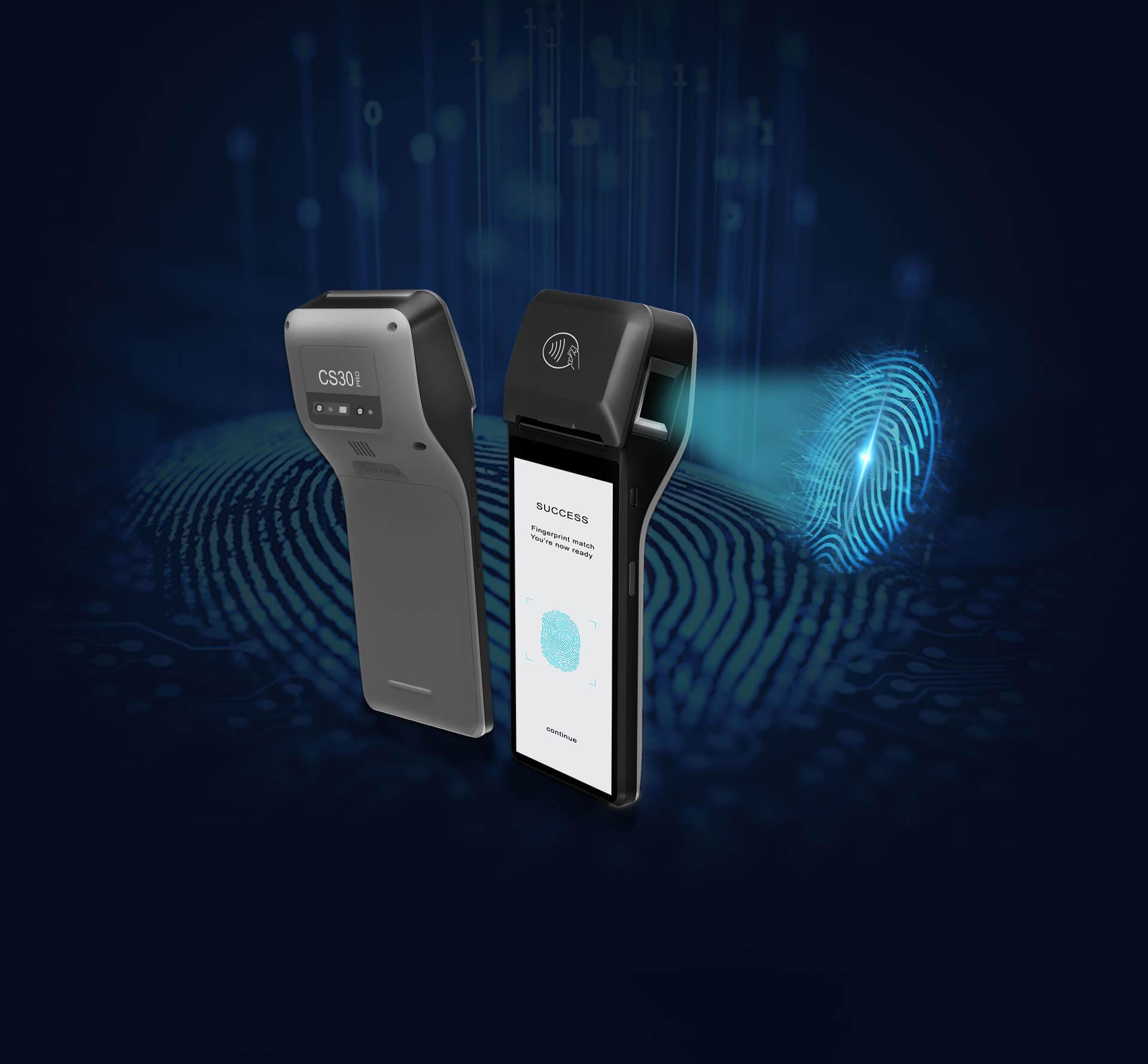

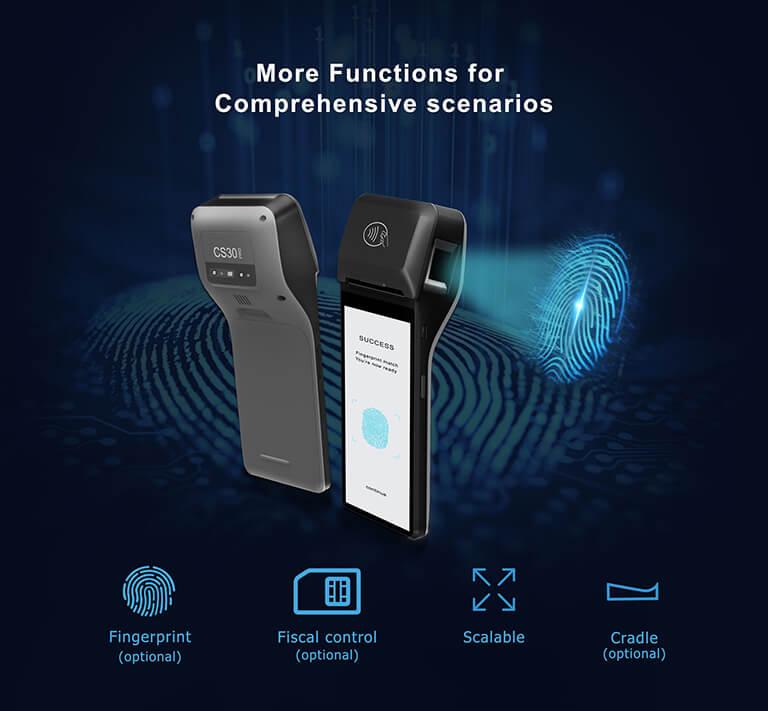

More Functions for
Comprehensive Scenarios

Fingerprint

Fingerprint
(optional)

Fiscal control

Fiscal control
(optional)

Scalable

Scalable

Cradle

Cradle
(optional)

Technical Specifications

Ciontek CS30

OS

Android 14.0

CPU

Quad-Core ARM Cortex-A53 2.0GHz

Memory

2GB RAM + 16GB ROM

Display

6-inch TFT IPS LCD, 1440x720 resolution

GMS

Support

Card Reader

NFC Contactless

Camera

5MP Rear Camera

Printer

58mm High-speed Thermal Printer, Ø40mm roll

Battery

Li-ion 7.4V / 2600mAh (3300mAh optional)

Communication

Wi-Fi IEEE 802.11 a/b/g/n (2.4GHz & 5GHz)
2G / 3G / 4G
Bluetooth

Card Slot

1× Micro SD slot
1× Micro SIM slots
1× PSAM slots

Charging Port

USB Type-C, 5V/2A

Keys

1× Reset Key, 1× Service Key

Navigation

GPS (A-GPS), BeiDou, Glonass, Galileo

Interface

1× USB 2.0 Type-C

Regulatory Certifications

CE, RoHS, FCC

Environmental Conditions

Operating Temp: -10°C to 50°C
Storage Temp: -20°C to 70°C
Humidity: 5% to 95% (non-condensing)

Optional Features

Fingerprint

FBI-certified, 508dpi

Barcode Scanner

Symbol 4710 2D scanner

Fiscal Module

support

Customer Display

Resolution 128x36

FAQ

Q1

What's your market and client reference for CS30 smart POS model?

As a SoftPOS hardware choice, CS30 supported SoftPOS vendor VIVA wallet in Europe for their Tap to Pay business.

Q2

How is the performance of printer?

In hardware level, the printer head is from Top brand Seiko, with over 50KM print head life; In driver level, CS30's printer supports bluetooth print mode, which means it supports ESC/P command, therefore for APP who develop upon this command will be smoothly supported.

Q3

Can I have 2 SIM card slots?

Technically it's possible, please contact our sales to share your project background and quantity information.
