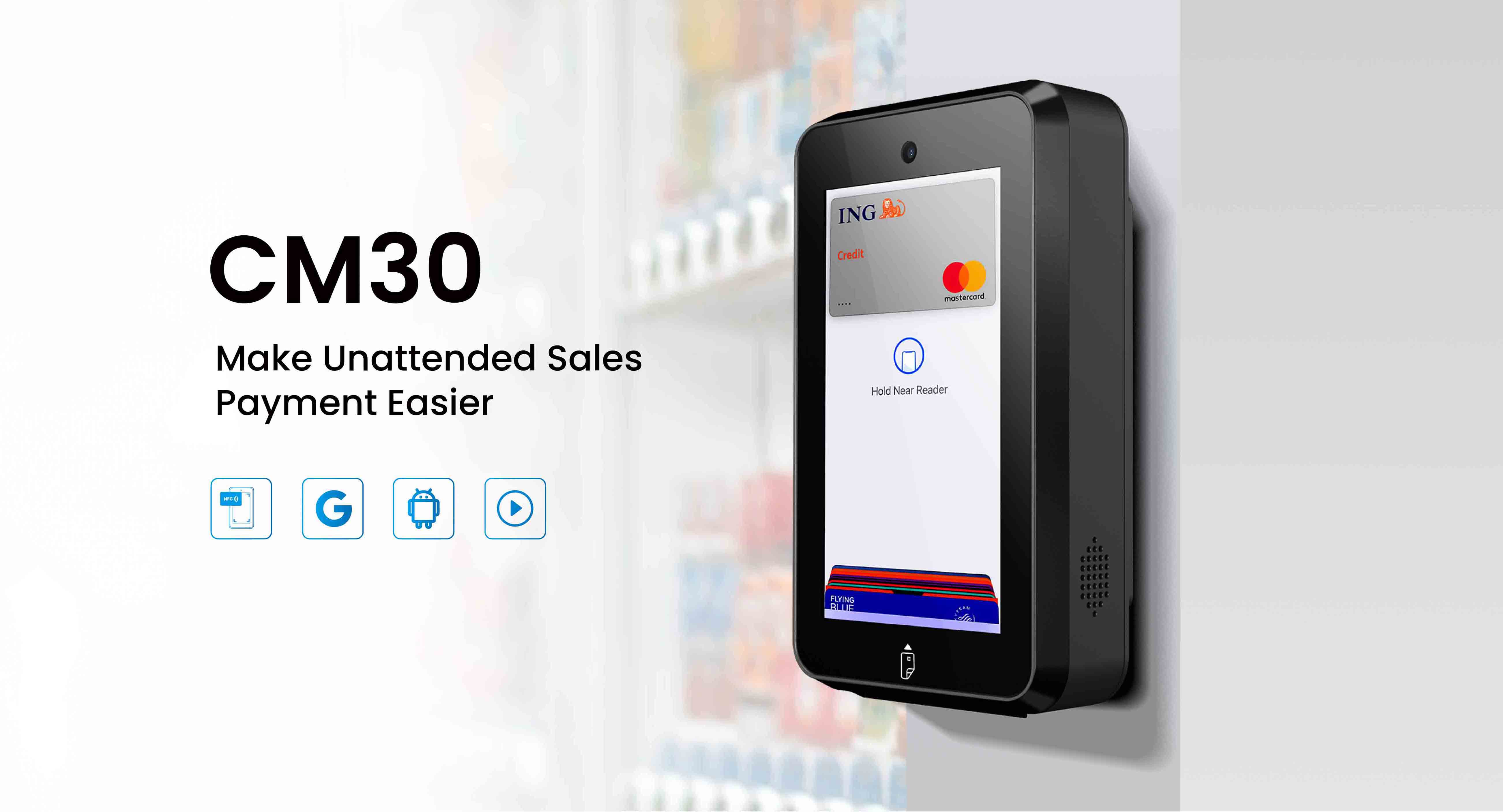

Make Unattended Sales
Payment Easier
SoftPOS + EMV/PCl dual verion

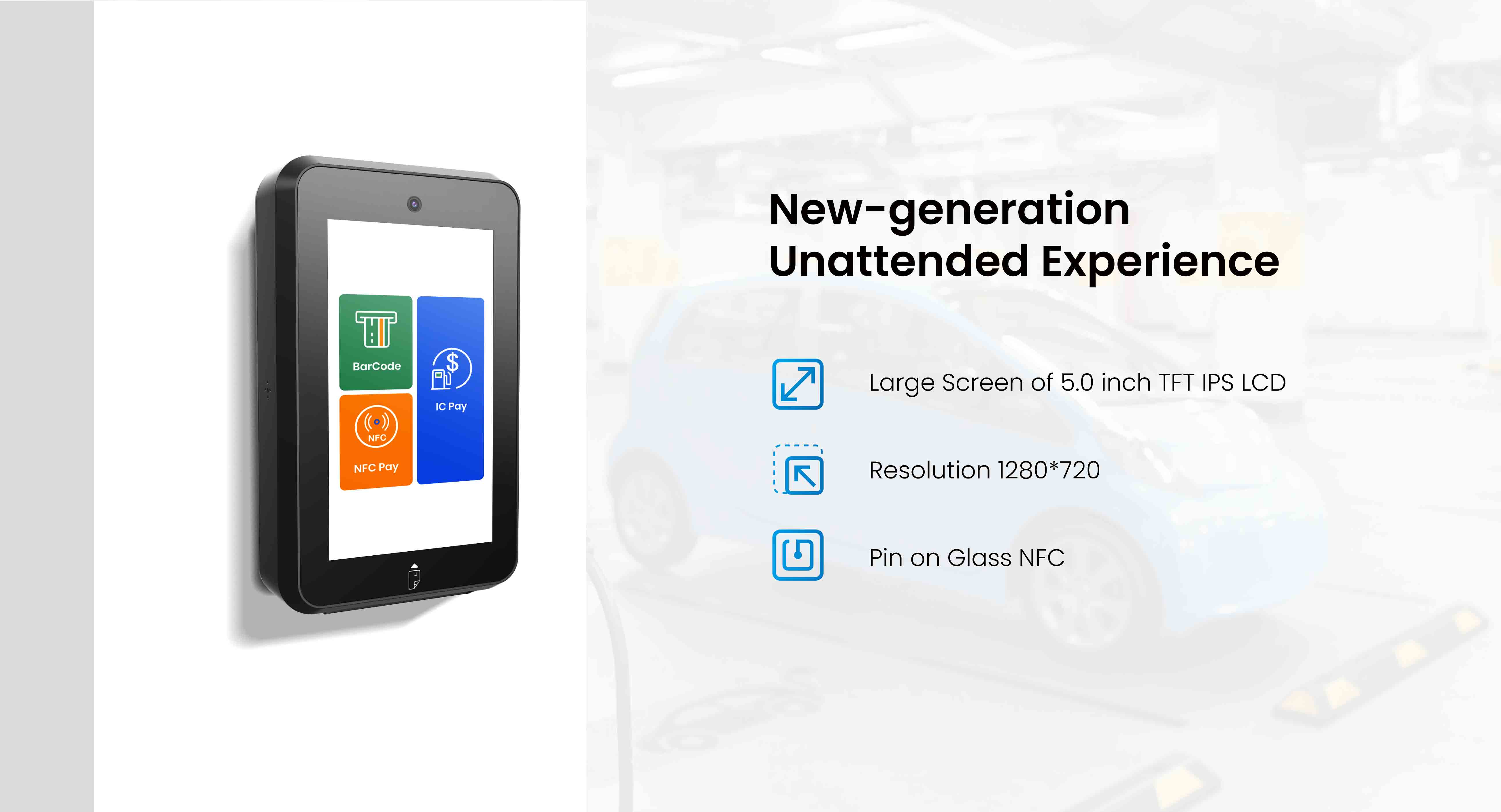

Large Screen of 5.0 inch TFT IPS LCD
Resolution 1280*720
Pin on Glass NFC
Designed to perform in
the harshest of outdoor enviroments.
IP54
IK08
BT, WIFI, 4G + The Android-based platform sustains endless possibilities
4G
WIFI
BT5.0

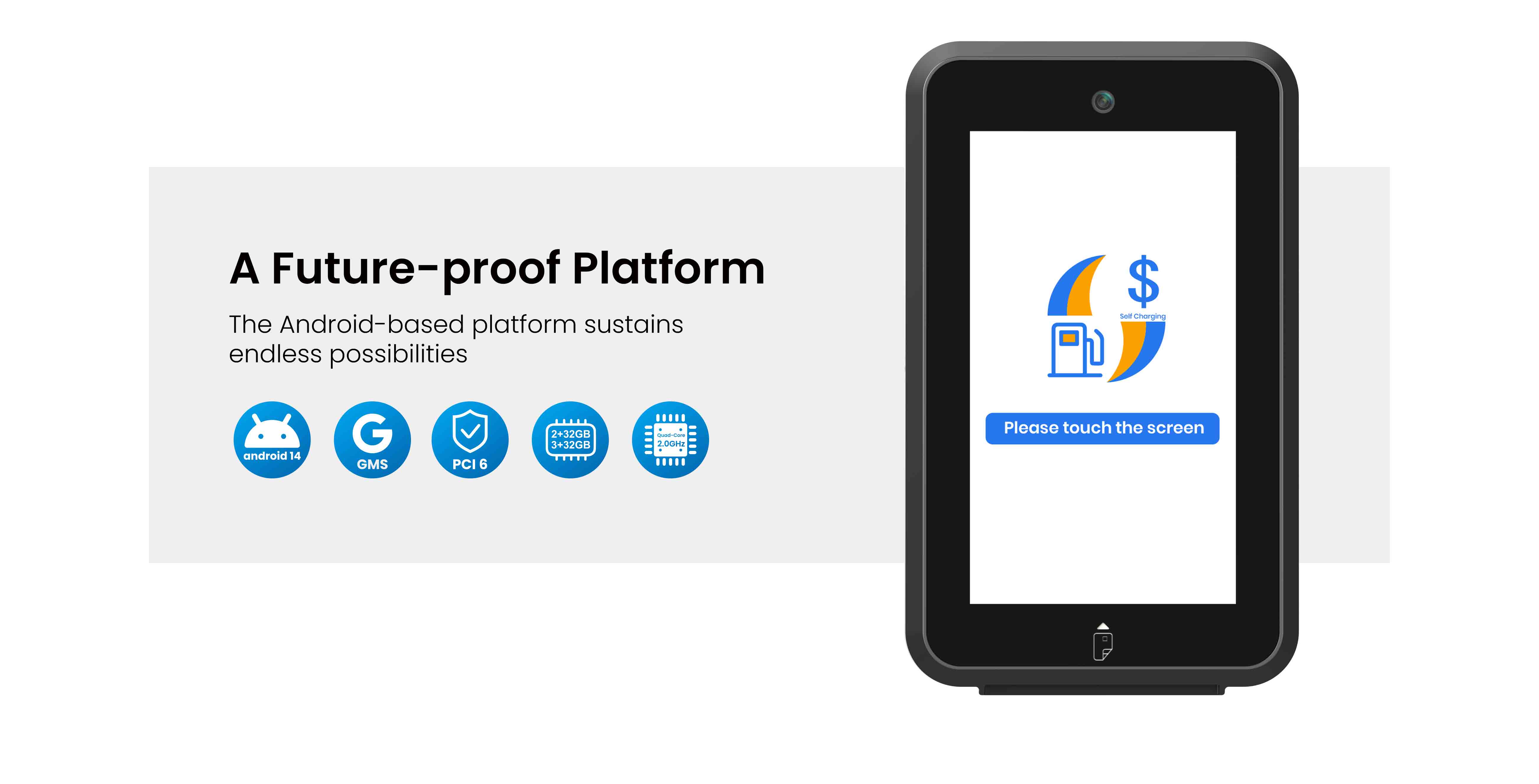

The Android-based platform sustains endless possibilities

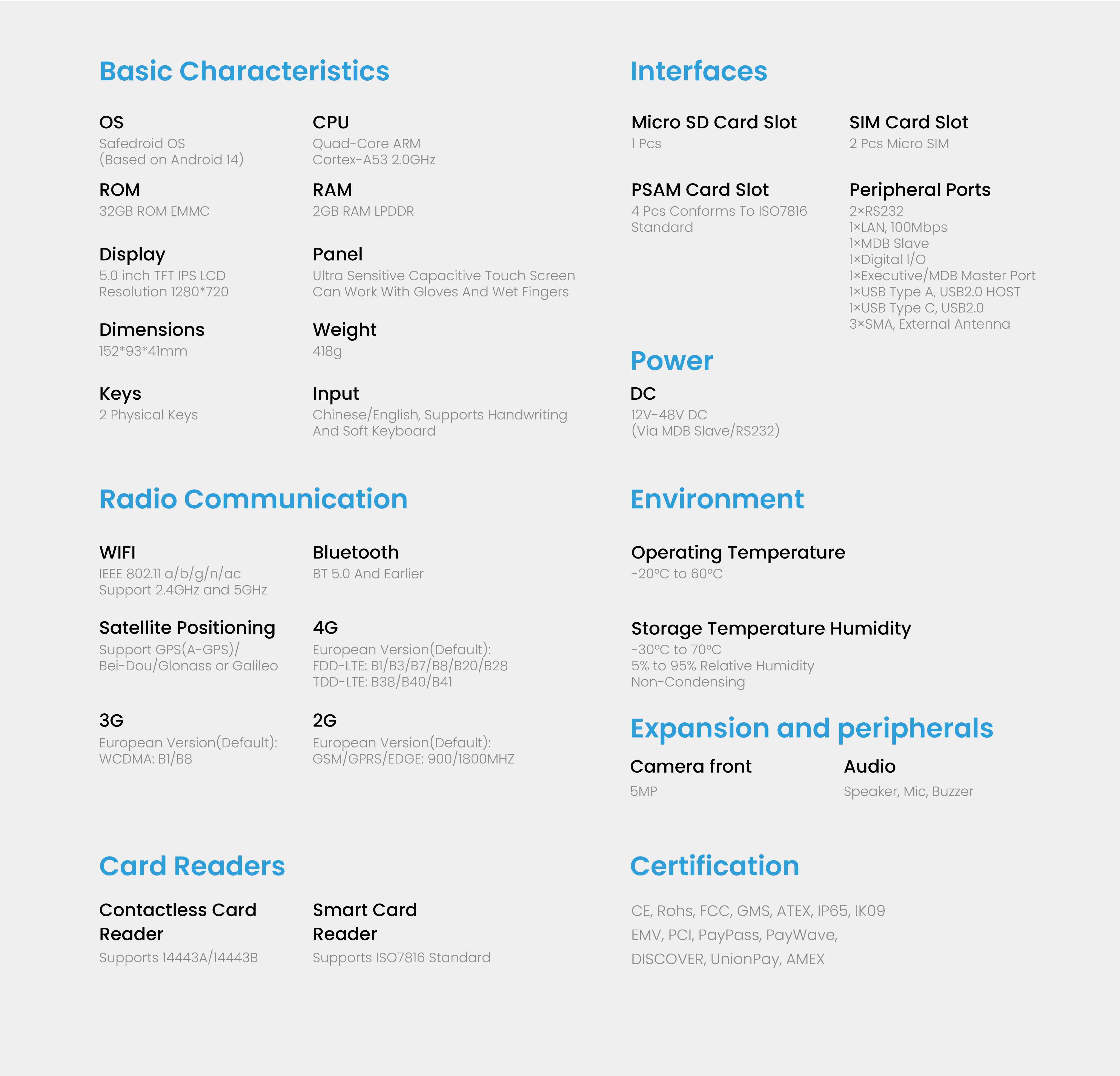

OS |
Safedroid OS (based on Android 14) |
CPU |
Quad-Core ARM Cortex-A53 2.0GHz |
ROM |
32GB ROM EMMC |
RAM |
2GB RAM LPDDR |
Display |
5.0 inch TFT IPS LCD, resolution 1280*720 |
Panel |
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers |
Dimensions |
152*93*41mm |
Weight |
418g |
Keys |
2xPhysical keys |
Input |
Chinese/English, and supports handwriting and soft keyboard |
WIFI |
IEEE 802.11 a/b/g/n/ac ,support 2.4GHz and 5GHz |
Bluetooth |
BT 5.0 and earlier |
Satellite |
Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo |
Positioning
|
European version(Default): FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 |
Contactless
|
Supports 14443A /14443B |
Smart Card
|
Supports ISO7816 standard |
Camera front |
5MP |
Audio |
Speaker，Mic, Buzzer |
Micro SD Card Slot |
1 Pcs |
SIM Card Slot |
2 Pcs Micro SIM |
PSAM Card Slot |
4 Pcs Conforms to ISO7816 standard |
Peripheral Ports |
1×RS232 1×LAN ,100Mbps 1×USB Type A, USB2.0 HOST 1×USB Type C ,USB2.0 1×MDB Slave 3×SMA, External antenna |
DC |
12v-48V DC (via MDB Slave / RS232) |
Operating
|
-20°C to 60°C |
Storage Temperature
|
-30°C to 70°C 5% to 95% Relative Humidity, Non-Condensing |
| CE, Rohs, FCC, GMS. EMV, PCI, PayPass, PayWave, DISCOVER, UnionPay, AMEX (optional) |
IP/IK Certified |
IP54, IK08 |
Latest Android OS helps integrator to enjoy the futureproof ecosystem; Elegent design with sufficient functions bring users smooth experience; Dual modes of SoftPOS plus EMV/PCI offers flexibility for various merchants scale.
CM30 has both payment certified and non-certified model, it applies to all scenarios such as ticketing, retail vending kiosk, petrol station, access control and etc.
We have developed bus pole fixing kit specially for this model, please contact our sales for more information.
